Herringbone twill weaves are twill weaves in which the twill diagonal changes direction after half of the weave pattern is drawn as NULL opposite FULL and FULL opposite NULL. Herringbone weaves are used in weaving fabrics for jackets, skirts, overcoats, suits and overcoats. Herringbone Twill Weaves; There are two types of herringbone Twill Weaves in the Warp Direction and Herringbone Twill Weaves in the Weft Direction.

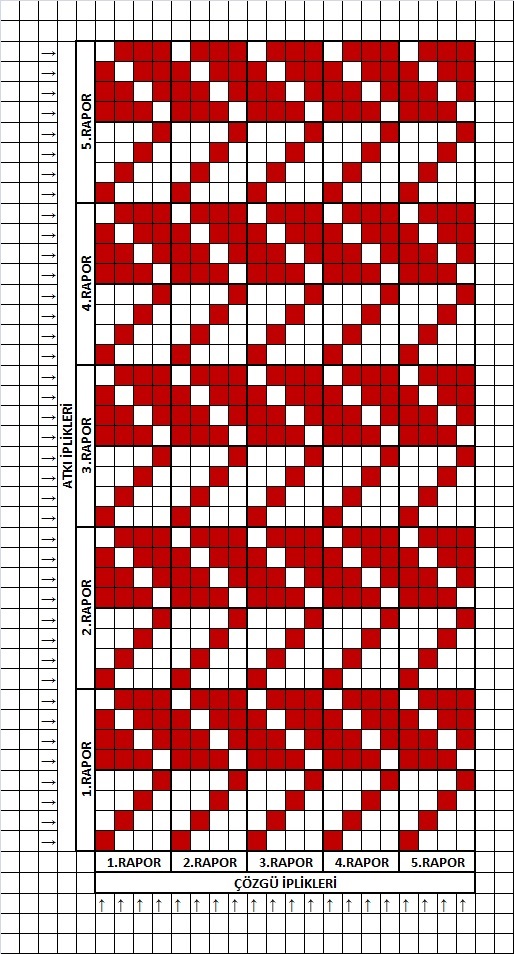

Herringbone weave in weft direction
In the drawing of herringbone twill weave in the weft direction, the main weave is drawn. After the last weft, EMPTY is written opposite the FULL ones in the last weft, and FULL is written against the EMPTY. In the WEFT DIRECTION, if the Twill weave, which forms the basis of the HERRINGBONE TWILY, is RIGHT, the second part is drawn LEFT. In herringbone twill weaves in the WEFT direction, the NUMBER OF WEFT WIRE in the report is twice the base weave. NUMBER OF WARP WIRES in the report in herringbone twill weaves in the WEFT direction; It is equal to the number of warps in the twill weave pattern. Well; If the pattern of the TWILY KNITTING, which is the basis of the HERRINGBREAK TWILN weaving in the WEFT direction, consists of 4 WARP AND 4 WEFT yarns; Knitting pattern of HERBIRTI TWILL weave in the WEFT direction; It consists of 4 warp and 8 weft threads.
